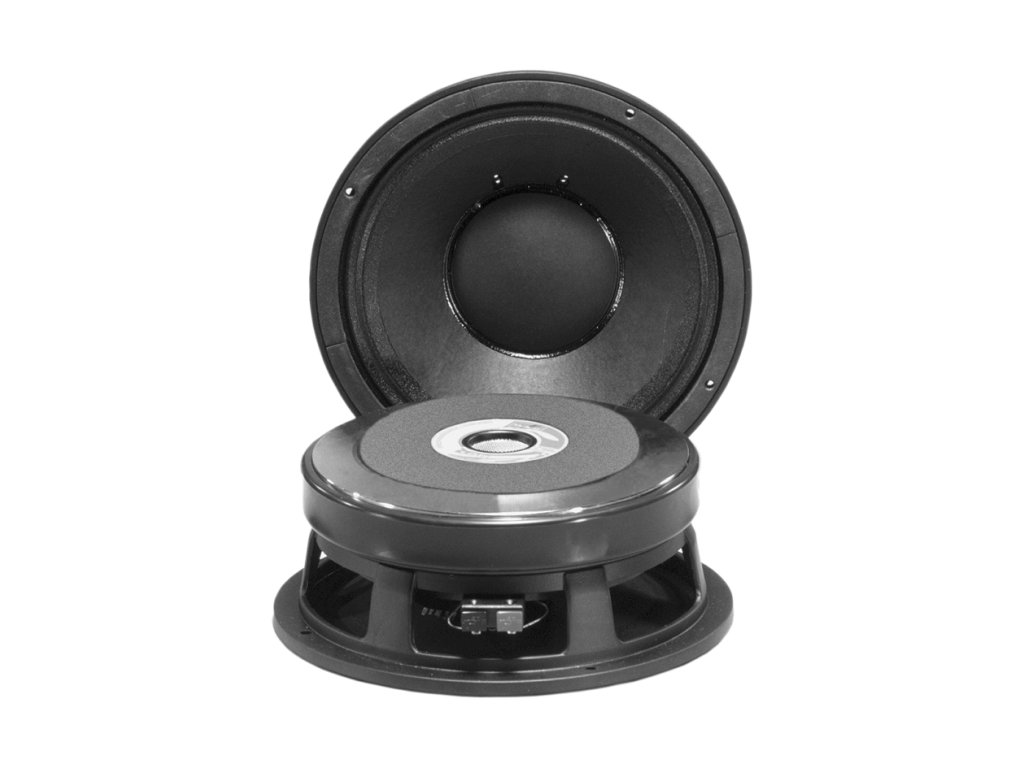

DAS Audio 10B 8/ohm
Kód: 410090-8Súvisiaci tovar
Podrobný popis
reproduktor 10", 400W, 98dB, 60-5000Hz, X-max 4,0mm, hmotnost 9,4 kgThe 10B is a top performance 10" ferrite midrange driver which offers high power handling capability with exceptional sensitivity over the mid-range frecuencies. It is suitable for either direct radiating or horn loaded applications.
Dodatočné parametre
| Kategória: | Reproduktory 10" |
|---|---|
| Záruka: | 24 |
| Hmotnosť: | 9.4 kg |
| EAN: | 8436542212434 |
| Bl (Tm): | 23,3 |
| Citlivost (dB): | 98,0 |
| Cívka (mat./mm): | Al 103 p |
| Cms (µm/N): | 157 |
| dostupné impedance: | 8 |
| EBP: | 281 |
| Fs (Hz): | 54 |
| Hag (mm): | 8,00 |
| hmotnost: | 9,40 |
| Hvc (mm): | 12,00 |
| Impedance (ohm): | 8 |
| Indukce (T): | 1,13 |
| L1 (mH): | 0,39 |
| L2 (mH): | 1,23 |
| magnet: | ferit |
| materiál koš/kryt: | Al |
| Mms (g): | 56 |
| No (%): | 2,27 |
| Otvor (mm): | 236 |
| Příkon (W): | 400 |
| Qes: | 0,192 |
| Qms: | 3,33 |
| Qts: | 0,181 |
| R2 (ohm): | 8,81 |
| Re (ohm): | 5,50 |
| Rozměr ("): | 10" |
| Rozsah (Hz): | 60 ÷ 5 000 |
| Sd (cm2): | 360 |
| SPLref (dB): | 95,6 |
| Vas (l): | 29 |
| Vd (cm3): | 144 |
| Xmax (0/pk mm): | 4,00 |
