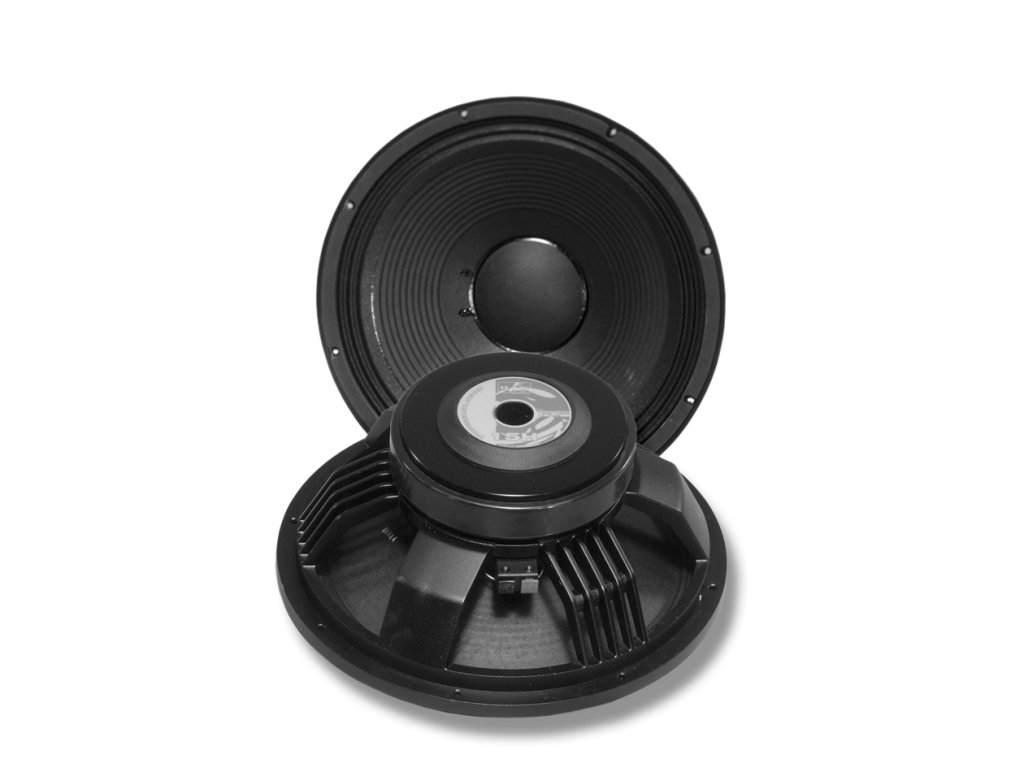

DAS Audio 15H 8/ohm
Kód: 410042-8Súvisiaci tovar
Podrobný popis
reproduktor 15", 600W, 96dB, 35-2000Hz, X-max 6,0mm, hmotnost 9,2kgThe 15H is a 1200 W program power 15" low frequency loudspeaker which combines excellent linearity, sensitivity and power handling characteristics. Primarily intended for compact bass reflex enclosures typically for use in two-way systems in combination with 1” compression driver.
Dodatočné parametre
| Kategória: | Reproduktory 15" |
|---|---|
| Záruka: | 24 |
| Hmotnosť: | 9.2 kg |
| EAN: | 410042-8 |
| Bl (Tm): | 22,1 |
| Citlivost (dB): | 96,5 |
| Cívka (mat./mm): | Cu 103 p |
| Cms (µm/N): | 159 |
| dostupné impedance: | 8 |
| EBP: | 113 |
| Fs (Hz): | 38 |
| Hag (mm): | 8,00 |
| hmotnost: | 9,20 |
| Hvc (mm): | 16,00 |
| Impedance (ohm): | 8 |
| Indukce (T): | 1,04 |
| L1 (mH): | 1,00 |
| L2 (mH): | 1,60 |
| magnet: | ferit |
| materiál koš/kryt: | Al |
| Mms (g): | 113 |
| No (%): | 2,54 |
| Otvor (mm): | 359 |
| Příkon (W): | 600 |
| Qes: | 0,335 |
| Qms: | 4,32 |
| Qts: | 0,311 |
| R2 (ohm): | 10,80 |
| Re (ohm): | 6,10 |
| Rozměr ("): | 15" |
| Rozsah (Hz): | 35 ÷ 2 000 |
| Sd (cm2): | 860 |
| SPLref (dB): | 96,1 |
| Vas (l): | 167 |
| Vd (cm3): | 516 |
| Xmax (0/pk mm): | 6,00 |
