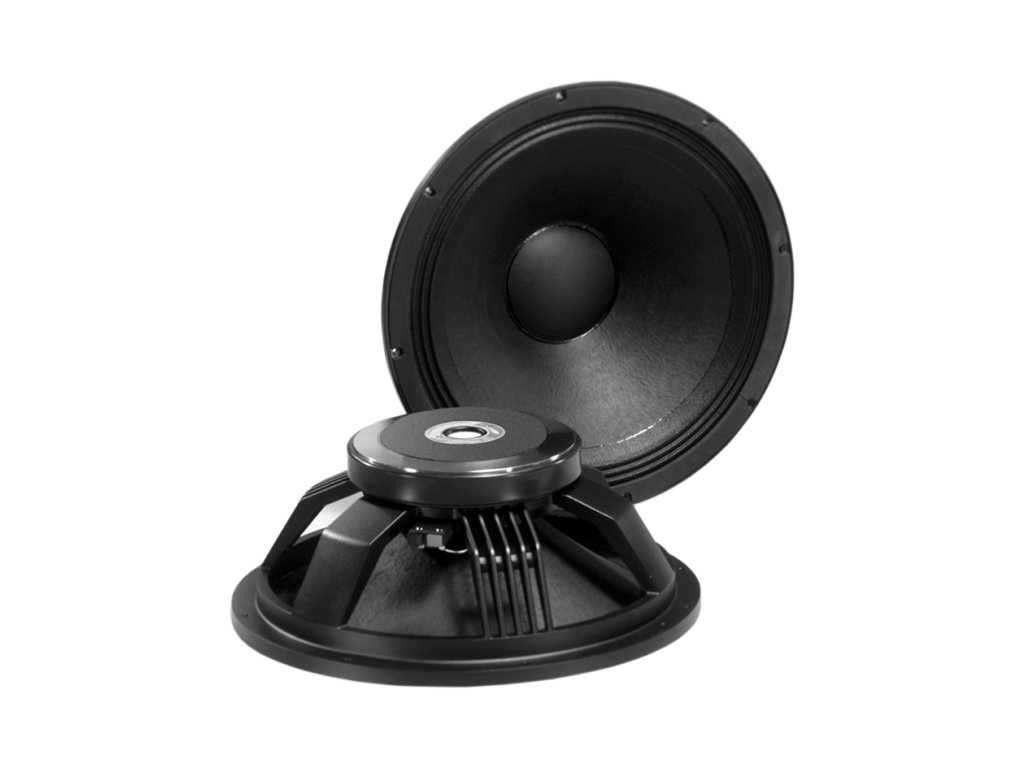

DAS Audio 18G 8/ohm
Kód: 410020-8Súvisiaci tovar
Podrobný popis
reproduktor 18", 700W, 99dB, 30-2000Hz, X-max 6,0mm, hmotnost 11,6kgThe 18G is a high performance 18" low frequency loudspeaker which achieving a bandwidth extension down to 30 Hz. The 97 dB average sensitivity and program power handling capability of 1400 W makes it one of the most popular D.A.S. loudspeakers. The 18G has been designed for use as a low bass or subwoofer component in either highly compact reflex, bandpass or horn loaded configurations.
Dodatočné parametre
| Kategória: | Reproduktory 18" |
|---|---|
| Záruka: | 24 |
| Hmotnosť: | 11.6 kg |
| EAN: | 410020-8 |
| Bl (Tm): | 24,8 |
| Citlivost (dB): | 99,0 |
| Cívka (mat./mm): | Cu 103 p |
| Cms (µm/N): | 145 |
| dostupné impedance: | 8 |
| EBP: | 104 |
| Fs (Hz): | 34 |
| Hag (mm): | 8,00 |
| hmotnost: | 11,60 |
| Hvc (mm): | 16,00 |
| Impedance (ohm): | 8 |
| Indukce (T): | 1,13 |
| L1 (mH): | 0,83 |
| L2 (mH): | 1,41 |
| magnet: | ferit |
| materiál koš/kryt: | Al |
| Mms (g): | 153 |
| No (%): | 3,18 |
| Otvor (mm): | 415 |
| Příkon (W): | 700 |
| Qes: | 0,327 |
| Qms: | 5,78 |
| Qts: | 0,309 |
| R2 (ohm): | 8,79 |
| Re (ohm): | 6,20 |
| Rozměr ("): | 18" |
| Rozsah (Hz): | 30 ÷ 2 000 |
| Sd (cm2): | 1 164 |
| SPLref (dB): | 97,0 |
| Vas (l): | 279 |
| Vd (cm3): | 698 |
| Xmax (0/pk mm): | 6,00 |
