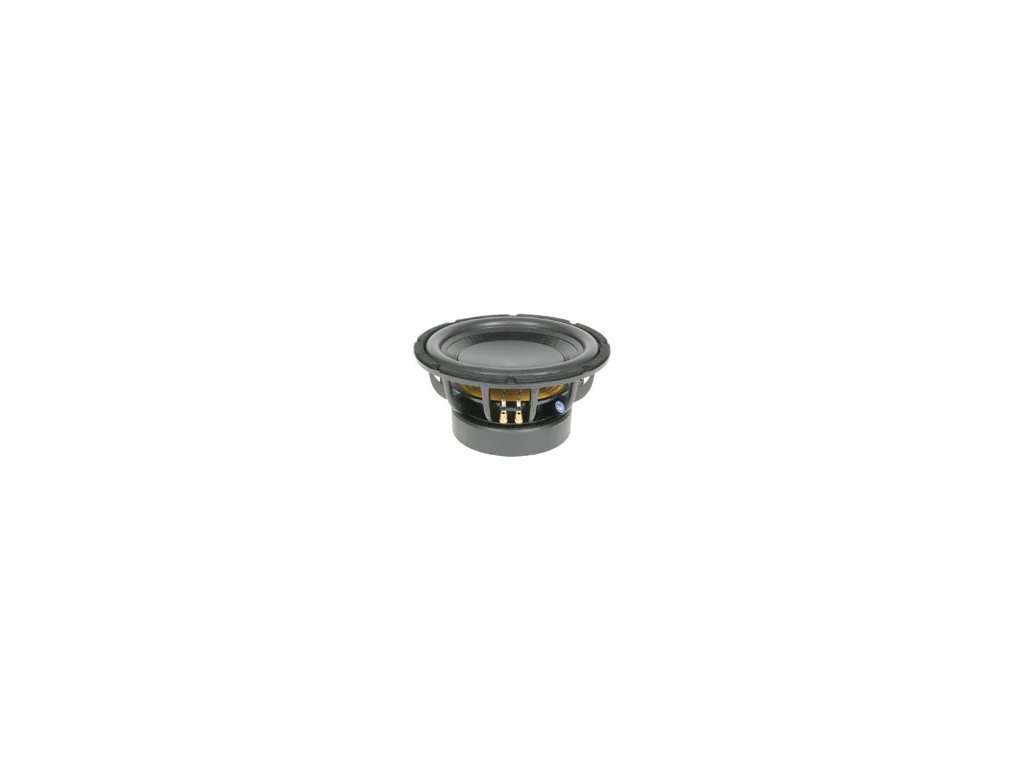

Eminence LAB12 6/ohm

Podrobný popis

reproduktor 12", 400W, 89,2dB, 25-125Hz, X-max 13,0mm, hmotnost 10,0kg

Nominal Basket Diameter 12", 304.8mm
Nominal Impedance* 6 ohms
Power Rating** Watts 400W
Music Program 800W
Resonance 22Hz
Usable Frequency Range*** 25Hz-125Hz
Sensitivity 89.2
Magnet Weight 160oz.
Gap Height 0.375", 9.53mm
Voice Coil Diameter 2.5", 63.5mm


Resonant Frequency (fs) 22Hz
DC Resistance (Re) 4.29
Coil Inductance (Le) 1.48mH
Mechanical Q (Qms) 13.32
Electromagnetic Q (Qes) 0.39
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 125.2 liters / 4.4 cu. ft.
Peak Diaphragm Displacement Volume 659cc
Mechanical Compliance of Suspension (Cms) 0.35mm/N
BL Product (BL) 15.0 T-M
Diaphragm Mass inc. Airload (Mms) 146 grams
Efficiency Bandwidth Product (EBP) 56
Maximum Linear Excursion (Xmax) 13.0mm
Surface Area of Cone (Sd) 506.7 cm2
Maximum Mechanical Limit (Xlim) 22mm


Recommended Enclosure Volume
Sealed 22.7-28.3 liters / 0.8-1 cu.ft.
Vented 45.3-101.9 liters/1.6-3.6 cu.ft.
Overall Diameter 12.32", 312.8mm
Baffle Hole Diameter 10.98", 278.9mm
Front Sealing Gasket fitted as standard
Rear Sealing Gasket fitted as standard
Mounting Holes Diameter 0.26", 6.6mm
Mounting Holes B.C.D. 11.77", 299mm
Depth 6.44", 164mm
Net Weight 22 lbs., 10 kg
Shipping Weight 23.8 lbs., 10.8 kg


Copper voice coil
Polyimide former
Double stacked 80 oz. ferrite
Vented and extended core
12-spoke die-cast aluminum basket
Kevlar-reinforced paper cone
Foam cone edge
Dual inverted dust caps
