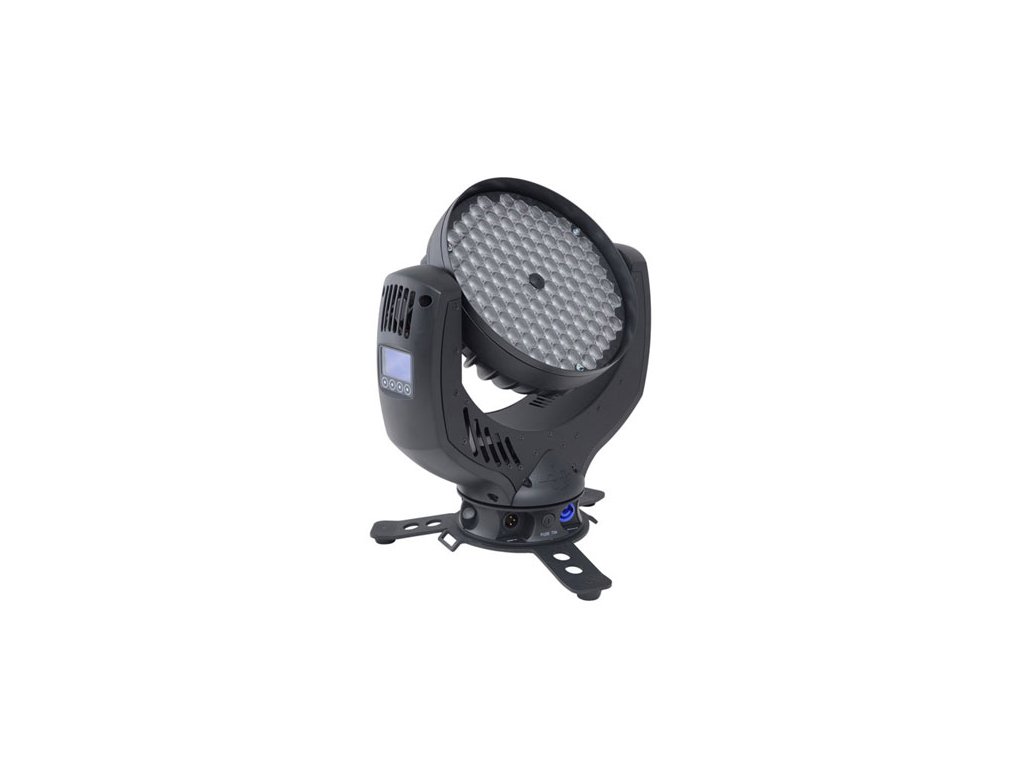

GLP Impression RZ

Podrobný popis

otočná LED hlava, ZOOM, DMX 512, 120 Rebel LED, 660° pan, 300° tilt, powercon, 370×340×145 mm, 8 kg, černá

Light source

* Additive color mixing
* 120 Luxeon Rebel high power LEDs
* Average service life: 50.000 h


RGB version

* 42 green LEDs, 36 blue LEDs, 42 red LEDs, wavelength optimized for a maximum presentable color space.

Optical system

* Zoomable optical system with 10° to 26° light distribution angle

Movement

* high precision stepping motor control
* 8 or 16 Bit resolution selectable
* maximum speed: 660° Pan in 2sec, 300° Tilt in 1sec
* Position Feedback


Control

* DMX-512 protocol
* backlit graphic-LCD
* 4 illuminated buttons
* very quiet, temperature controlled ventilation system
* convection cooling possible if needed
* overtemperature protection
* color calibration feature
* internal color-presets


Connectors

* DMX: XLR 3 pin
* Mains voltage: Powercon


Operation parameters

* Mains voltage: 100 240V, 50-60Hz, 350VA
* Maximum ambient temperature: 45°C
* Orientation: any


Flexible mounting concept

* upright : tripod with brackets for ratchet belt
* hanging (vertical): M10 nut with lockable installation position for a halfcoupler
* hanging (horizontal): adjustable bar
* for sideward truss installation (optional)
* 2 attachment points for safety wire


Colors of box

* black, silver, white
