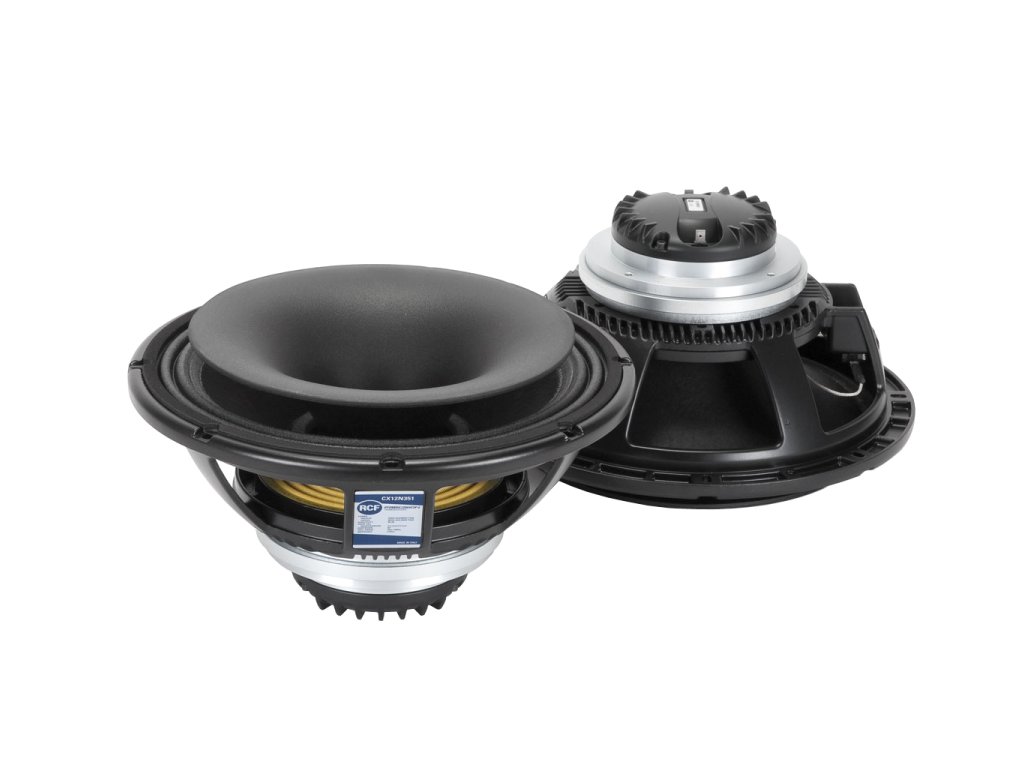

RCF CX12N351 8/ohm

Podrobný popis

Koax. reproduktor 12"/1,4", 450/90W, 101/110dB, 40-20000Hz, X-max 5,5mm, vyzař.úhel 60°, hmotnost 5,9kg

• The CX12N351 is a top class coaxial design that provides an excellent frequency response linearity withvery low distortion.
• The CX12N351 is powered from an integrated high power neodymium magnetic structure that guarantee high dynamic and sensitivity for both components.
• The mid-bass section features a 3,5" inside-outside voice coil design that provides a very high power handling, especially in comparison to a standard 3" voice coil.
• Thanks to an integrated demodulation ring the mid-bass section gets a fastest time response and lower distortion.
• The compression driver use a 2.5" diaphragm with a 1.4" throat featuring several state of the art technologies. The diaphragm and suspension are formed from 0.05 mm thick pure titanium

Features:

• 3.5-inch , fibreglass outside aluminum voice coil
• 900 Watt continuous program power handling
• 98.5 dB Sensitivity
• 50 Hz - 3.0 kHz Frequency range
• Dual-forced air ventilation for minimum power compression
• M-roll surround and exponential cone geometry
• Demodulation ring
• 2.5-inch Diaphragm, 1.4-inch Exit Throat/pure titanium compression driver
• 180 Watt Continuous program power handling
• Frequency range: 700Hz – 20kHz
• Direct Drive Voice Coil Assembly
• 3-slot, optimised geometry phase plug
• Aluminum rear cover
• Copper inductance ring for extended response


CX12N351 Driver:

• Nominal Diameter: 35.5 / 1.4 mm/inch
• Rated Impedance: 8 ohm
• Program Power: 180 W
• Power Handling Capacity: 90 W
• Sensitivity 1 W, 1 m: 110 dB
• Frequency Range: 700 - 20000 Hz
• Minimun Impedance: 7.9 ohm
• Voice Coil Diameter: 63.7 / 2.5 mm/inch
• Voice Coil Material: Edgewound Aluminum
• Number of layers: 1 - Outside
• Diaphragm Material: Pure Titanium
• Diaphragm Design: Dome
• Suspension Material: Pure Titanium
• Suspension design: Progressive
• BL factor: 10.4 T · m
• Flux density: 2.0 T
• Phase plug design: 3 slot
• Phase plug material: Aluminium
• Magentics: Neodymium
• Voice Coil Demodulatuon: Copper ring


CX12N351 Horn:

• Throat Diameter: 36 / 1.4
• Nominal coverage (-6dB): 60°°
• Cut-off Frequency: 900
• Material: Structural Polyurethane


CX12N351 Woofer:

• Nominal Diameter: 300 / 12 mm/inch
• Rated Impedance: 8 ohm
• Program Power: 900 W
• Power Handling Capacity: 450 W
• Sensitivity: 98.5 dB
• Frequency Range: 50 - 3000 Hz
• Effective Piston Diameter: 260 / 10 mm/inch
• Max Excursion Before Damage (peak to peak): 39 / 1.5 mm/inch
• Minimun Impedance: 6.8 ohm
• Voice Coil Diameter: 87 / 3.4 mm/inch
• Voice Coil Material: Copper
• Voice Coil Winding Depth: 16.5 / 0.65 mm/inch
• Number of layers: 2
• Kind of layer: inside / outside
• Top Plate Thickness: 11 / 0.43 mm/inch
• Cone Material: No pressed pulp
• Cone Design: Curved
• Surround Material: Polycotton
• Surround Design: M - roll


Thiele/Small Parameters:

• Resonance frequency: Fs - 58 Hz
• DC resistance: Re - 5.8 ohm
• Mechanical Factor: Qms - 5.4
• Electircal Factor: Qes - 0.21
• Total Factor: Qts - 0.20
• BL Factor: Bl - 25 T · m
• Effective Moving Mass: Mms - 62 g
• Equivalent Cas air load: Vas - 47 liters
• Effective piston area: Sd - 0.053 m2
• Max. linear excursion ( mathematical): Xmax - 5.5 mm
• Voice - coil inductance @ 1 kHz: Le1K - 1.5 mH
• Half-space efficiency: Eff - 4.4%


Mounting Information:

• Overall Diameter: 320 / 12.6 mm/inch
• Bolt Circle Diameter: 293 - 304 / 11.5 - 12 mm/inch
• Bolt Hole Diameter: 6.5 / 0.3 mm/inch
• Front Mount Baffle Cut-out: 284 / 11.2 mm/inch
• Rear Mount Baffle Cut-out: 284 / 11.2 mm/inch
• Depth: 144 / 5.66 mm/inch
• Volume occupied by the driver: 2.2 / 0.77 liters/ft3


Shipping Information:

• Net Weight: 5.9 / 13 kg/lbs
• Shipping Weight: 6.7 / 14.7 kg/lbs
