RCF DM 41

Podrobný popis

reprobox venkovní, 2pásmový, 3,5”+1” kalot., 15 W/100 V, 87 dB, 180°×170°, 130×197×115 mm, IP55, plast/kov, bílý

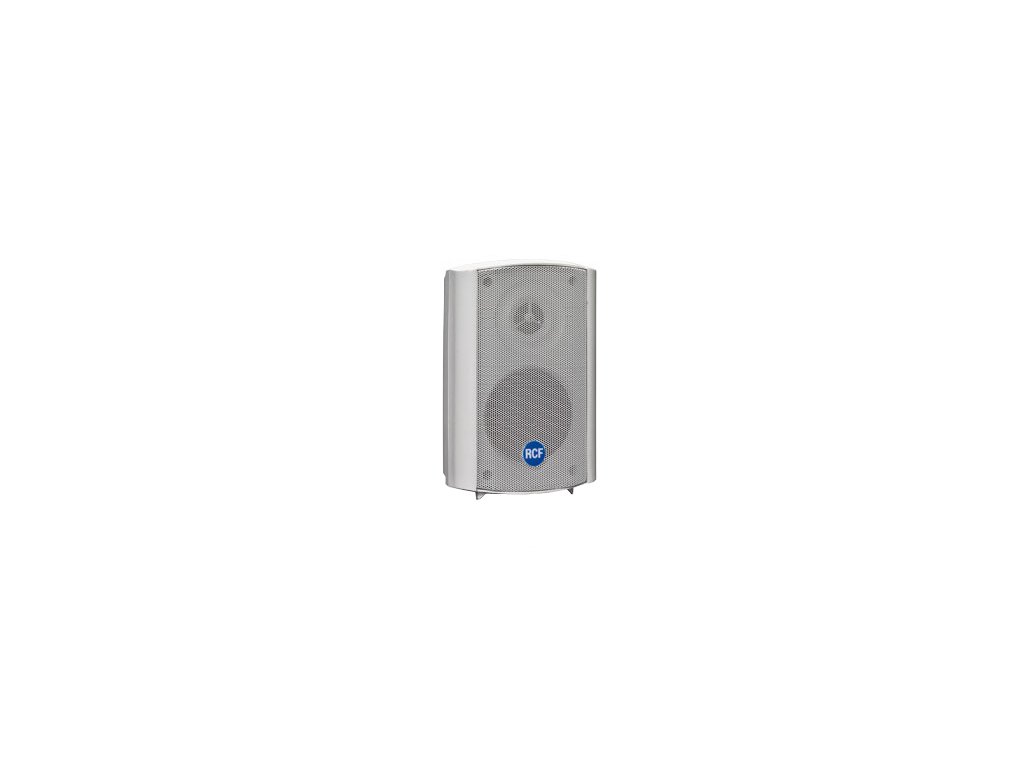

DM 41 is a compact two way speaker designed for constant voltage systems.

The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Features:

• 3,5" woofer with mylar cone 1'' tweeter
• Music power/RMS: 30 W/ 15 W
• Built-in multitap transformer for constant voltage system
• Body in self-extinguishing composite material
• IP55 protection, suitable for outdoor use
• Adjustable mounting accessory included


Acoustical Specifications:

• Type of speaker: Compact two-way
• Frequency Response: 100 Hz ÷ 20 kHz
• Max SPL @ 1m: 102 dB
• Horizontal coverage angle: 180°
• Vertical coverage angle: 170°
• Power Handling: 15 W RMS
• Peak Power Handling: 30 W PEAK
• System Sensitivity: 87 dB
• Impedance: 16 ohm
• Protections: IP 55
• Crossover frequencies: 2.5 Hz


Transducers:

• Speaker: 3.5"
• Tweeter: 1"


Input Section:

• Input connector: 2 conductor cable
• Constant voltage: 100 V, 70 V
• Power Selection: 15 - 10 - 5 - 2.5 W (100V)


Cabinet:

• Hardware: Body in self-extinguishing composite material
• Colour: White ivory
• Grille: Steel


Physical Specifications:

• Height: 197 / 7.75 mm/inch
• Width: 130 / 5.11 mm/inch
• Depth: 115 / 4.52 mm/inch
• Net weight: 1.72 / 3.79 kg/lbs


Shipping information:

• Package height: 260 / 10.23 mm/inch
• Package width: 180 / 7.08 mm/inch
• Package depth: 175 / 6.88 mm/inch
• Shipping weight: 2.09 / 4.6 kg/lbs
