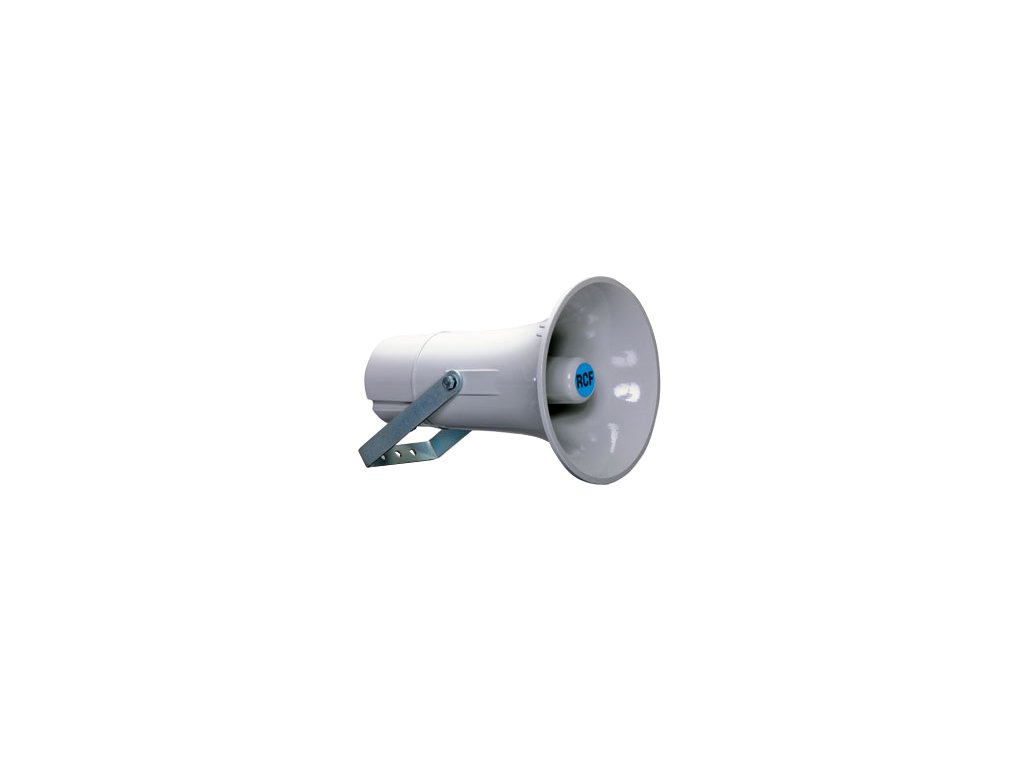

RCF HD 216/ST

Podrobný popis

tlakový reproduktor kruhový venkovní, 10 W/100 V, 108 dB, 80°, 215×300 mm, IP55, hliník, šedý

Particularly compact, sturdy, and weatherresistant the HD 216/ST delivers a high level of sound directivity and faithful voice reproduction.
It can be used both indoors and outdoors, even in the most severe weather conditions. Installation is quick and easy.
The HD 216/ST can be used in constant voltage sound systems.

Features:

• Body in RAL 7035 grey die-cast aluminium.
• Supplied with attachment bracket.
• Watertight construction IP 55.
• Excellent mechanical and acoustic features.
• Transformer for changing output level.


Acoustical Specifications:

• Type of speaker: Die cast aluminium
• Frequency Response: 350 Hz ÷ 15 kHz
• Max SPL @ 1m: 123 dB
• Horizontal coverage angle: 80°
• Vertical coverage angle: 80°
• Power Handling: 20 W RMS
• Peak Power Handling: 30 W PEAK
• System Sensitivity: 108 dB
• Impedance: 16 ohm
• Protections: IP 55


Input Section:

• Input connector: 2 conductor cable, 1 meter lenght
• Constant voltage: 100 V , 70 V , 25 V V
• Power Selection: 20 - 10 - 5 - 2.5 W (100 V)


Cabinet:

• Hardware: Body in RAL 7035 grey die-cast aluminium.
•Colour: Grey


Physical Specifications:

• Height: 300/11.81 mm/inch
• Width: 300/11.81 mm/inch
• Depth: 215 / 8.46 mm/inch
• Net weight: 3.2 / 7.05 kg/lbs


Shipping information:

• Package height: 230 / 9.05 mm/inch
• Package width: 230 / 9.05 mm/inch
• Package depth: 355 / 13.97 mm/inch
• Shipping weight: 3.66 / 8.06 kg/lbs
