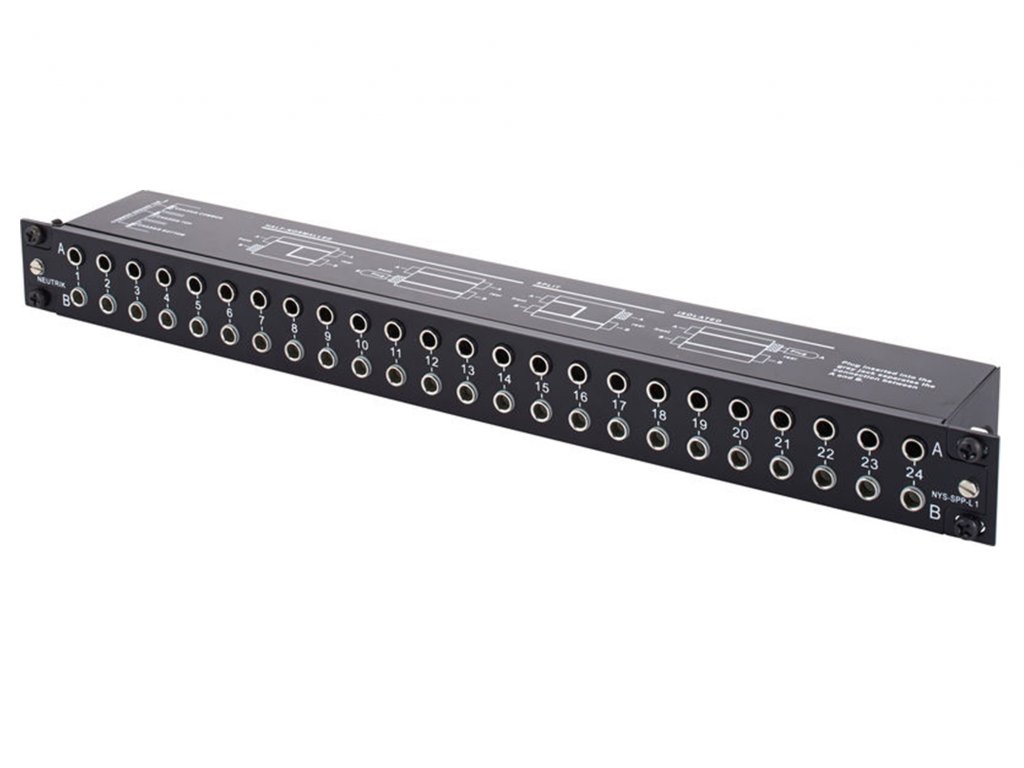

REAN NYS-SPP-L Patch Panel

Podrobný popis

NEUTRIKNYS-SPP Patch Panel 1/4", 19"/1U, 24 symetrických kanálů. .pole číslované na čelní i zadní straně.

#

1/4" Patch Panel with 2 rows of sockets, 24 front pairs and 24 rear pairs. 19" rack-mount and fully PCB-wired (24 vertical PC boards) without nut fastening. Identification strips incl. for front and rear panel.
Technical Data:

Electrical
Connector-contact resistance: < 10 mOhm
Switch-contact resistance: < 10 mOhm
Insulation resistance: > 2G Ohm @ 500 V dc
Current rating: 1 A
Dielectric strength: > 1000 V dc
Crosstalk between upper and lower channel: > 100 dB @ 1 kHz
Mechanical
Jack lifetime: > 10.000 insertions/withdrawal cycles
Dimensions: 483 mm (W) x 44 mm (H) x 71 mm (D)
Insertion/withdrawal force: < 20 N / > 10 N
Rack mount panel: 19" x 1U

Materials
Housing: Steel, black coated
Connector shell: ABS
Contacts: CuZn39Pb3, CuSn6 plated
Temperature range: -30°C to +80°C
