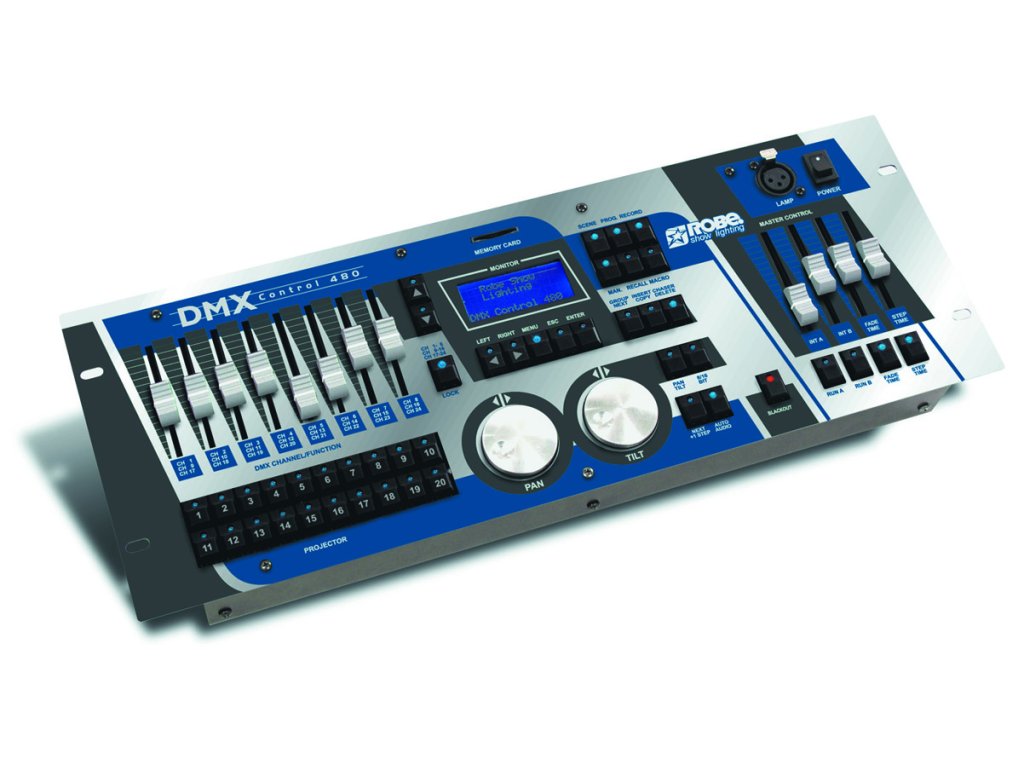

ROBE XT DMX Control 480

Podrobný popis

DMX ovladač, 20 strojů po max 24CH, 16 bit PAN/TILT, 750 scén, 255 programů po max. 50 step, 20x chase, knihovna 100 světel, MACRO, 32Mb karta,4U

Electrical Specification:

- Wiring options: 230V or 115V, 50/60 Hz

Control and Programming:

- Realtime control of Moving heads and Scanners
- Total 480 channels, 2 DMX Outputs
- Control 20 projectors up to 24 channels each
- 20 Fixture Groups
- 750 Programmable Senes
- 255 Programs with max. 50 steps
- 100 Records with max. 50 steps
- 20 Programmable Chasers with adjustable speed
- 100 Projectors in Library (50 Projectors are user definable)
- 16 bit precision control of PAN and TILT movement
- LCD backlight display with adjustable contrast and backlight
- Sliders for direct control of light intensity during running scenes, programs and records
- Parallel running 2 scenes, programs and records
- Continually adjustable Step time and Fade time
- Macro functions – Color and Gobo values can be assigned to the buttons
- User definable system default settings
- 2 encoder Wheels for smooth control of PAN and TILT movement
- Microphone music control facility
- Remote configuration, control and programming of projectors
- Security Code protection
- Desk Lamp societ
- 32 MB Multi Media Card – which allows saving recorded scenes, programs and records. MM Card contains 60 banks, possible to save 750x60 scenes, 255x60 programs, 100x60 records

Rigging:

- Rack size: 19" 4U rack mountable
