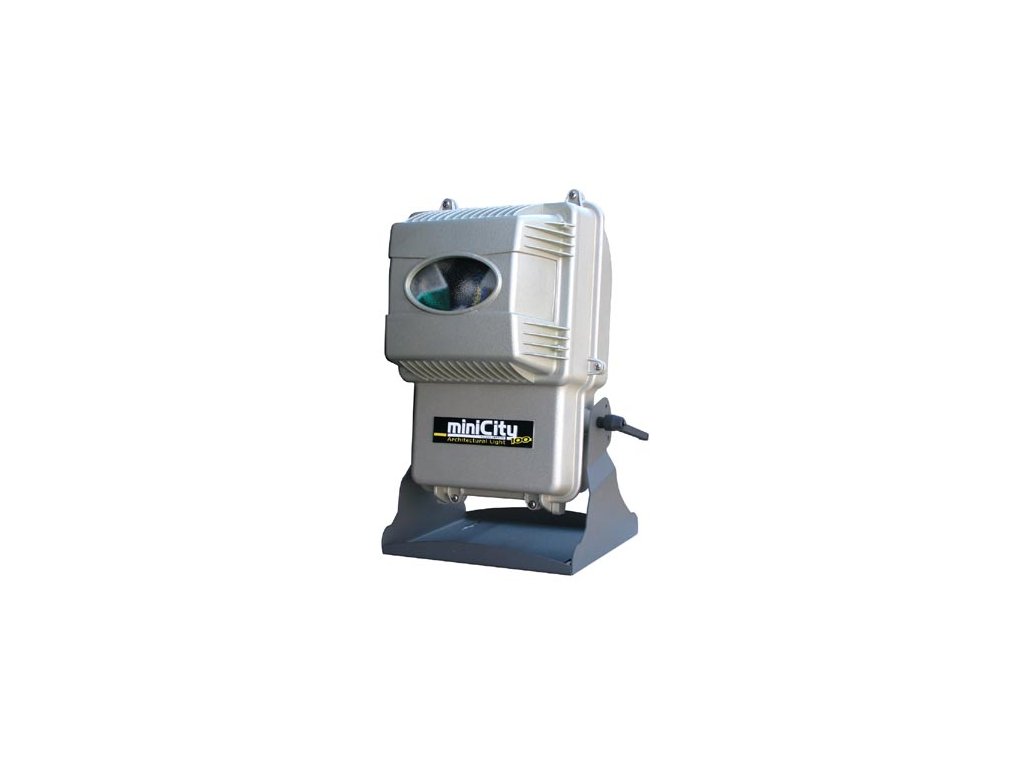

Studio Due Mini City 100

Podrobný popis

architektonické svítidlo, colorchanger CYM mix, lampa CDM-T 70W, funkce master-slave, váha 10kg, IP 66 OUTDOOR

LAMPS:
CDM-T 70W/830 (PHILIPS)
-Discharge MasterColour
-Color temperature: 3.000° K
-Average lamp life: 12.000 hours
-Luminous flux: 6.600 lm
-Burning position: Universal

CDM-T 70W/942 (PHILIPS)
-Discharge MasterColour
-Color temperature: 4.200°K
-Average lamp life: 12.000 hours
-Luminous flux: 6.600 lm
-Burning position: Universal

BEAM ANGLE:
-20° (50%)

OPTIC COLOUR SYSTEM:
-Full CYM color mixing, unlimited variety of colours and shades
-High resolution stepper motors

IP RATE = IP 66

CONTROL INPUT:
-Standard interface: RS-485; opto-couplet
-InputProtocol: USITT DMX 512

AUTOMODE:
-Stand-alone control: auto mode function master/slave (synchro mode) with 27 programs

DMX CHANNELS:
-1=motor speed
-2=cyan
-3=yellow
-4=magenta
-5=not used
-6=basic colours/rainbow
-7=remote reset

POWER SUPPLY:
-Rated voltage: (with internal voltage selector)
-230V/50Hz = 1
-230V/60Hz = 2
-200V/50Hz = 2
-117V/60Hz = 3
-100V/50Hz = 3
-Rated power: 130Va
-Rated current: 0,6A (230V)

FUSES:
-Lamp fuse: 2.0A/250V (delay time)

POWER FACTOR CORRECTOR: built-in cos O 0.9
