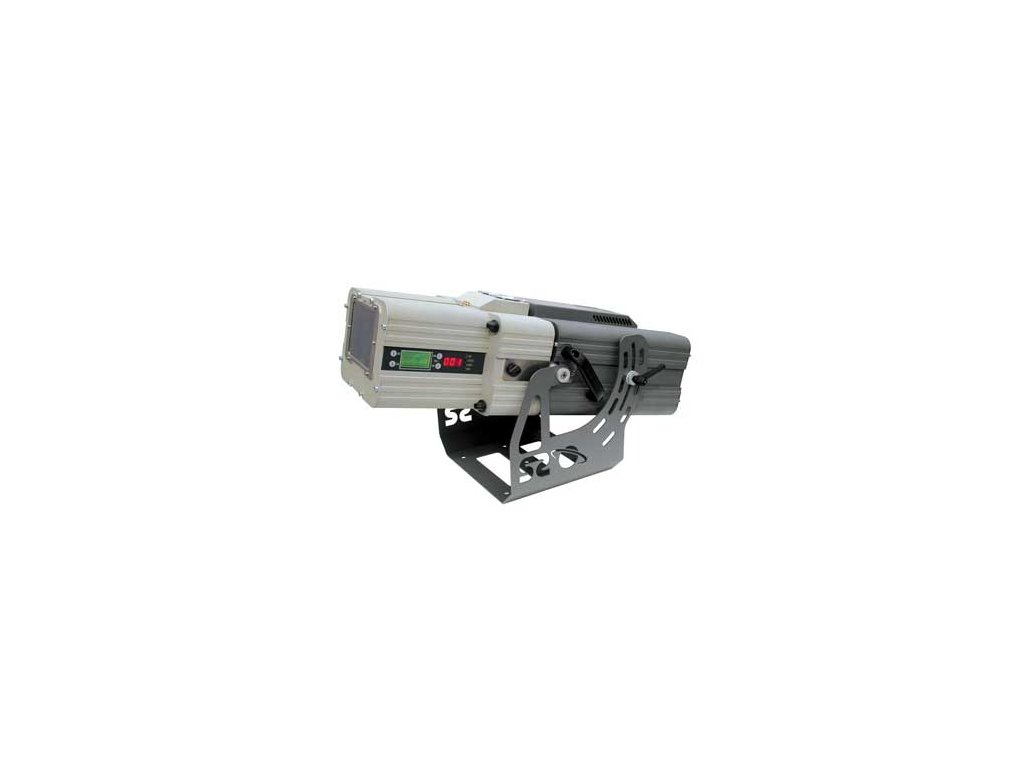

Studio Due PhotoWall 1200e

Podrobný popis

Fotoprojektor, 10-90 snímků, rychlost výměny, 10 - 90 snímků na filmu, dimmer, strobo, motorický focus, lampa HMI 1200/GS, 10 kanálů DMX, display s nastavením auto režimu, volba optiky, 755x475x390mm/28kg

LAMP:
-HMI 1200W/GS
-Color temperature: 6.000° K
-Average lamp life: 1000 hours
-Luminous flux : 110.000 lm
-Burning position: universal

MAIN FEATURES -Electronic Ballast with PFC; (95-260V; 47-63Hz)
-Control panel with graphic LCD display and smart reading by DMX start address by a triple led display
-Easy and intuitive program and setup by a dynamic menu
-Four full editable user programs for a total of 682 scenes for stand alone control (without DMX controller)
-Full length film continuous positioning by DMX 16 bit or by “INDEX MODE“ for fast positioning frame
-Selectable film lenght (from 10 to 90 frames)
-Closed loop film position control by optical encoder
-Film speed: max 5 sec./10 frames; min 90sec./1 frame
-Linear mechanical dimmer 0..100%
-Strobe function: min. 1 flash/2 sec. - max 8 flash/1 sec.
-Motorized focus

FILM
-90 pictures film endowed with the fixture
On request:
-PC and Mac file (Illustrator or CorelDraw) for custom film

OPTIC:
-4 optics available: (see diagrams)
-Standard: f160 - f180 O 80mm
-Optional: f230, f112, f100

DMX CHANNELS:
-ch1= scroller speed
-ch2= strobe
-ch3= dimmer speed
-ch4= dimmer
-ch5= scroller coarse
-ch6= scroller fine
-ch7= focus
-ch8= not used
-ch9= index
-ch10= reset lamp/off

POWER SUPPLY
-Mains power supply: 95-260V; 47-63Hz
-Built in electronic PFC: cosO 0.99
-Lamp square wave frequency: 100Hz
-Max electronic lamp dimmer: -35% (800W)
-Remote optocoupled lamp on/off
-Thermal shutdown protection
